Submit “multipart/form-data” to a third-party service in SFCC

A use case you will not run into often is submitting a file to a third-party service. And it is not easy to find documentation or examples on how to do it.  For that reason, I decided to write a quick guide on implementing it!

It turns out it is not hard to do once you have all the puzzle pieces! But isn’t that the case with many things?

TLDR; Solution

For the people who want a quick solution to their file upload problem without much reading work, here you go!

And before you start commenting that I put everything in a controller, it is just an example. Please use helper classes and the works, and don’t put everything in a controller.


					'use strict';

var server = require('server');

server.get('SubmitFile', function (req, res, next) {
    var LocalServiceRegistry = require('dw/svc/LocalServiceRegistry');
    var HTTPRequestPart = require('dw/net/HTTPRequestPart');
    var File = require('dw/io/File');

    var myFormSubmissionService = LocalServiceRegistry.createService("FormService", {
        createRequest: function(svc, params) {
            var zipFile = new File(new File(File.TEMP), 'myFile.zip.gz');

            return [
                new HTTPRequestPart('zipFile', zipFile, 'application/gzip', 'UTF-8'),
                new HTTPRequestPart('zipFile-two', zipFile, 'application/gzip', 'UTF-8'),
            ];
        },
        parseResponse : function(svc, response) {
            return response;
        }
    });

    res.print(myFormSubmissionService.call().object.text)

    next();
});

module.exports = server.exports();




Pieces of the puzzle

Files

In this example, we use a file on the Webdav located in the TEMP directory:  “/on/demandware.servlet/webdav/Sites/Temp”.

There are multiple ways to submit files, like a base64 encoded file string stored in different ways within Salesforce B2C Commerce Cloud. But we will not be covering these alternatives. The example should be enough to get you started.

LocalServiceRegistry

As with any third-party integration, please use the built-in LocalServiceRegistry.

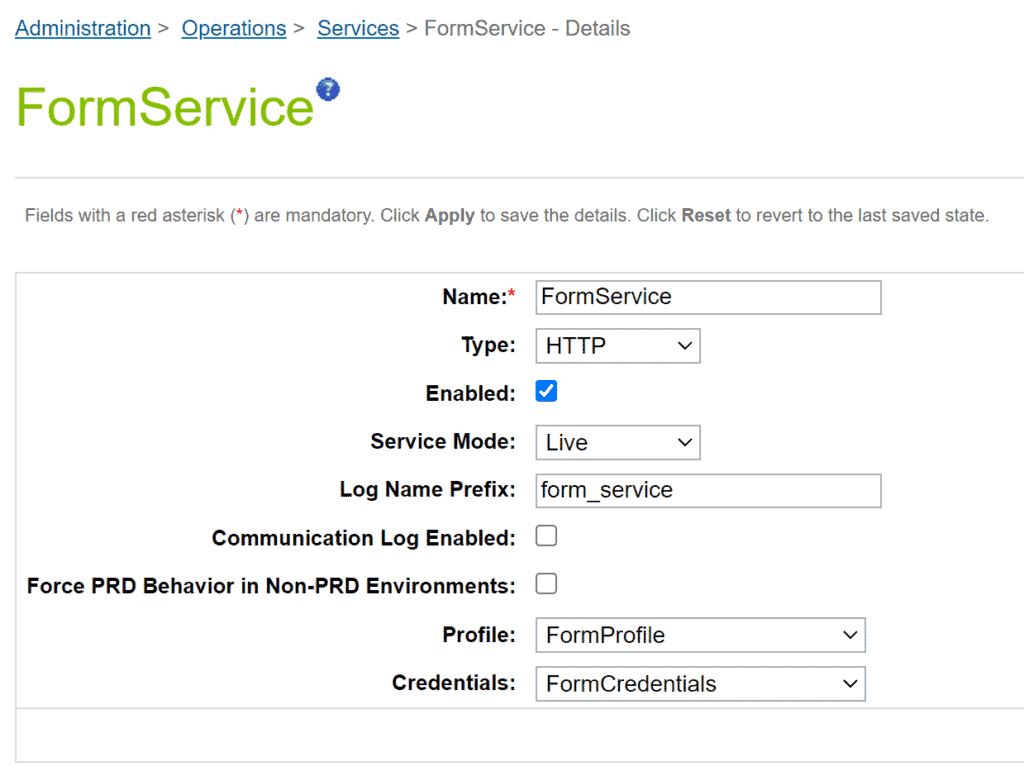

But how do you configure it in the Business Manager? Let’s have a look!

Select the type “HTTP”; otherwise, the LocalServiceRegistry code might not behave as expected.

As for the profile and credentials linked to your service, they will depend on your implementation.

Building the request


					var zipFile = new File(new File(File.TEMP), 'myFile.zip.gz');

return [
    new HTTPRequestPart('zipFile', zipFile, 'application/gzip', 'UTF-8'),
    new HTTPRequestPart('zipFile-two', zipFile, 'application/gzip', 'UTF-8'),
];



To build up the multipart request, we need to ensure that we return an Array of HTTPRequestParts. We submit the same file twice; they can, of course, be different.

In this example, we pass multiple files. But it can also be other types:

Encoding


					new HTTPRequestPart('zipFile', zipFile, 'application/gzip', 'UTF-8');



When working with files, you must send extra information along the way:

  • Content-Type: The type of file, in this case, a zipped file (application/gzip)

  • Encoding:  The type of encoding of the file; if it is incorrect, it will be unreadable at the other end. Or it might open but show unreadable content.

  • File Name: You can also send the file name along if needed.

The Response




res.print(myFormSubmissionService.call().object.text)




Nothing special to mention here. You will be able to handle the response like any service call and check whether or not the call was successful.
